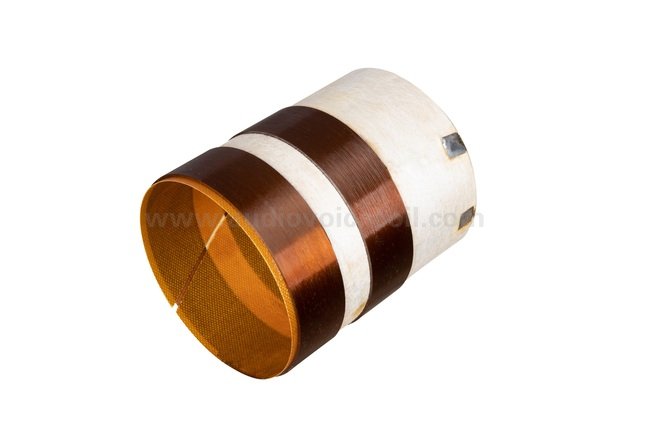

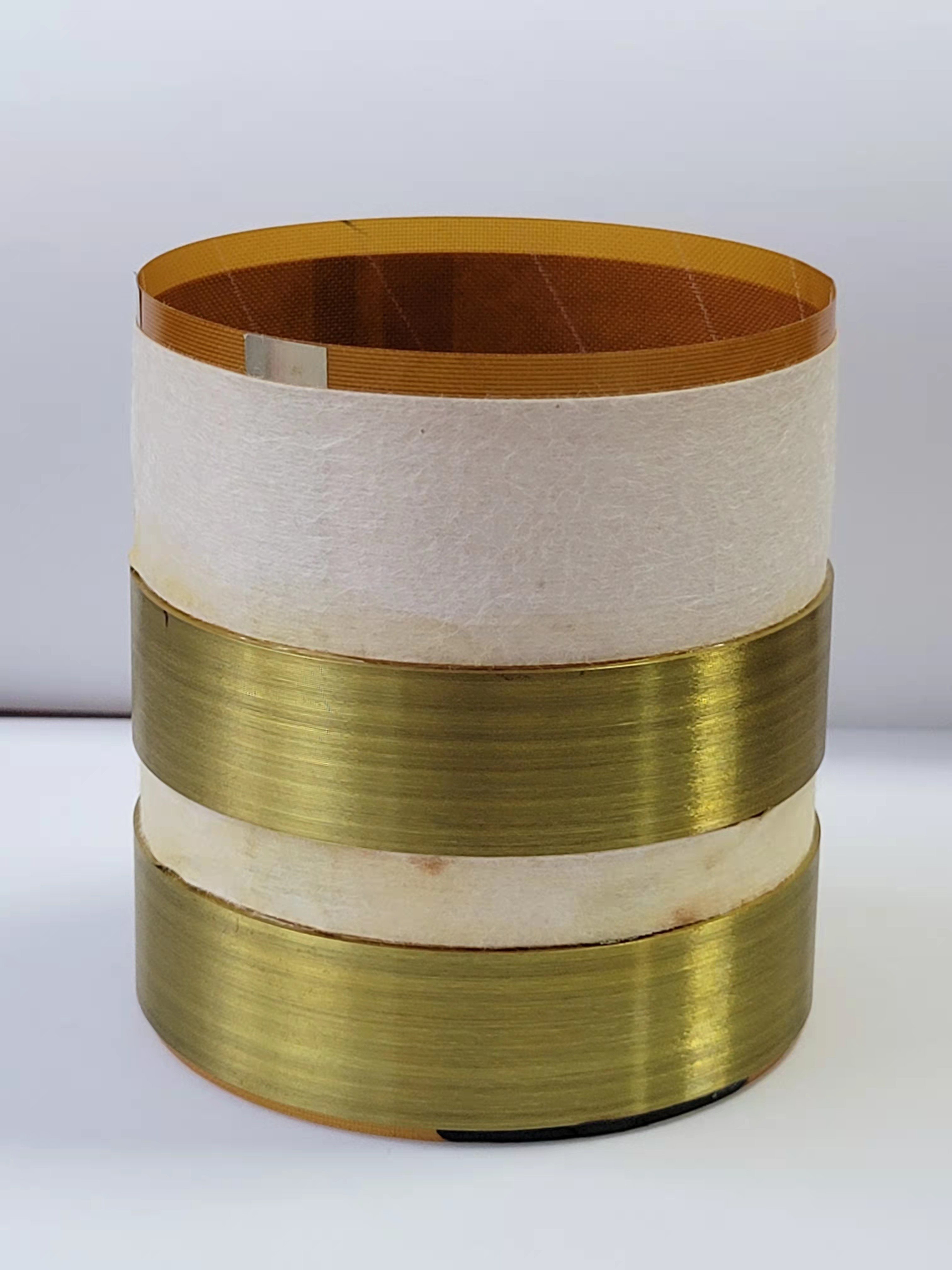

VOICE COIL 3 inch, 76.2mm DOUBLE VOICE COIL 2+2 Ohm for JBL 2268 Woofer Bass Loudspeaker.Internal Diameter: 76.2mm
Total Former Height: 92mm
Coil Height: 20mm+20mm
Fiber Glass Composite Bobbin Former
Pure Aluminum Ribbon Wire
Distance between two winding lines: 12mm
Double set of voice coils
Impedance: 2+2 ohm
For Pro Audio Speaker Application
